Fun with LTSpice

No more fiddling around with boxes of components and searching for datasheets of components that arent available only to find that the reason why your MOSFET is not triggering correctly is because of an incorrect calculation i made when I read the datasheet!

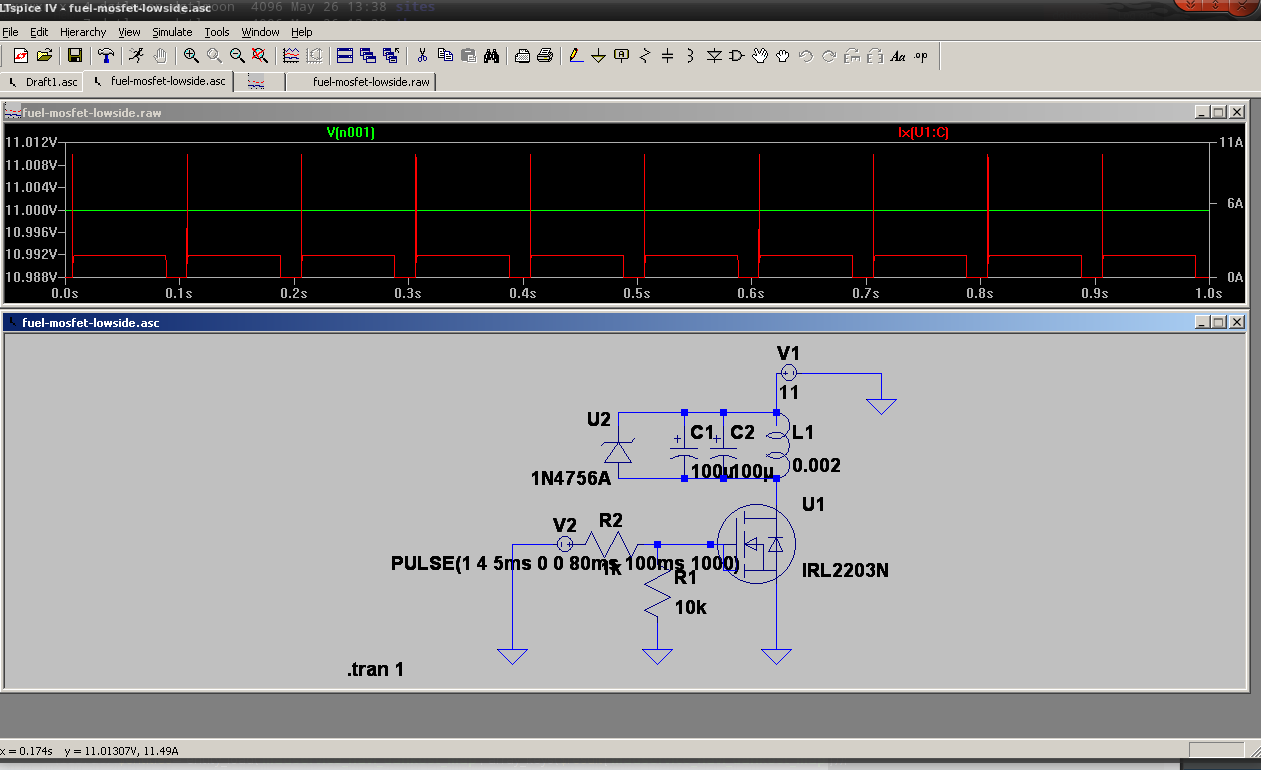

Recently got the hang of modelling circuits in the wonderful but slightly weird (Well, not really, it's just the keyboard commands are weird like F5 to delete a component etc)
What's nice is that you can measure voltage/current and set the run time conditions (seconds, minutes etc) and also set the voltage input conditions (sinewave, and others)
